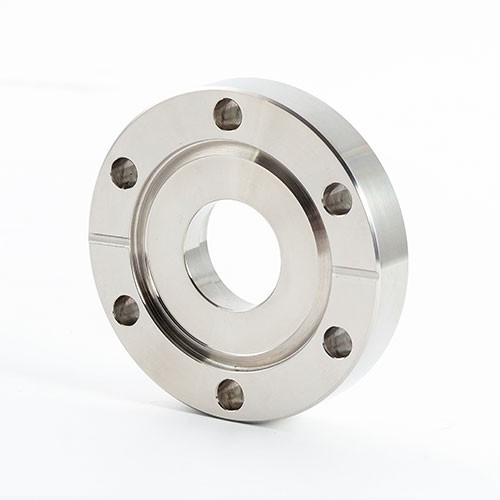

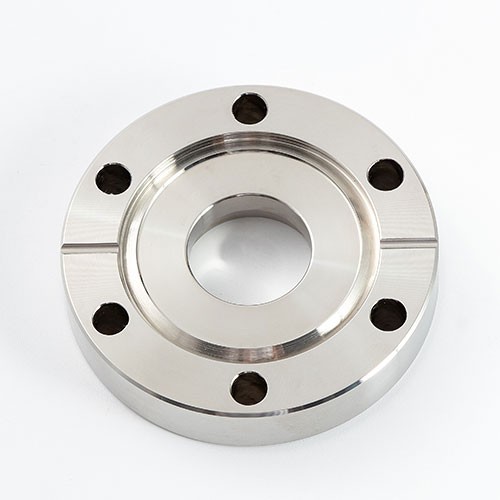

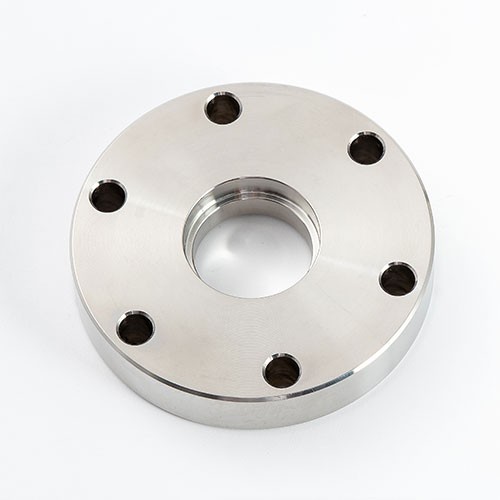

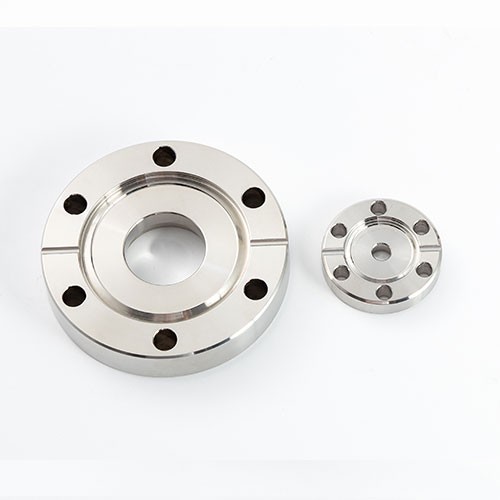

CF Bored Flange, Fixed

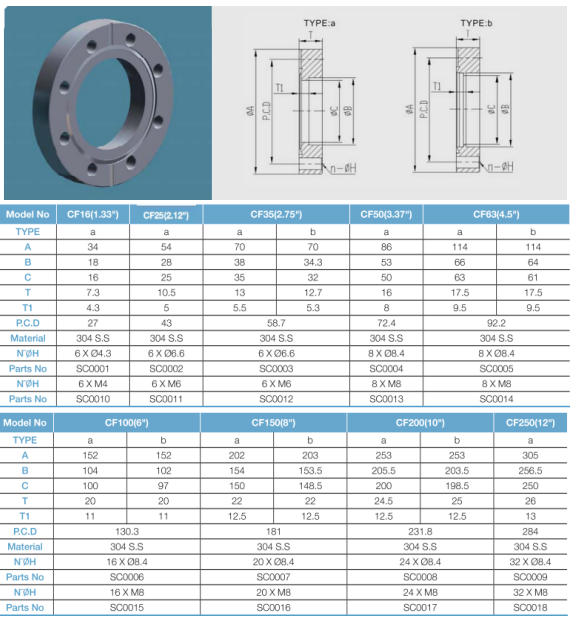

Size: CF16, CF35, CF63, CF100, CF150, CF200, CF250, CF300, CF400, CF500
Bored Size: Bored 38.2mm, Bored 63.8mm, Bored 159.3mm or as your request
For tube Size: OD38*1.5mm, OD63.5*1.65mm, OD159*2mm or as your request
Material: SS304, SS316L, SS316Ti, SS316LN-ESR
Type: Fiexed flange, Rotatable flange
Hole: Through hole, tapped holes (Metric holes or Inch holes)
Seal: Copper gasket sealed
Usage: UHV chamber
