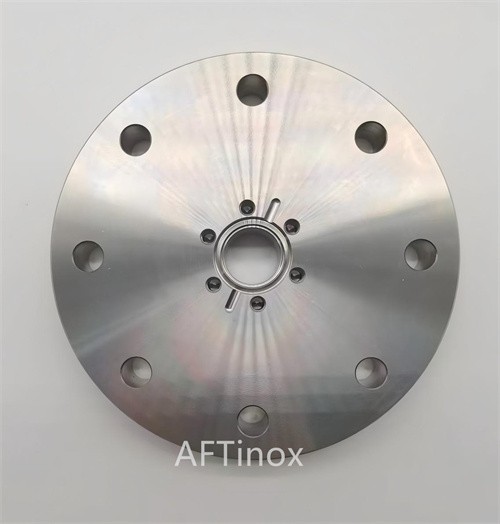

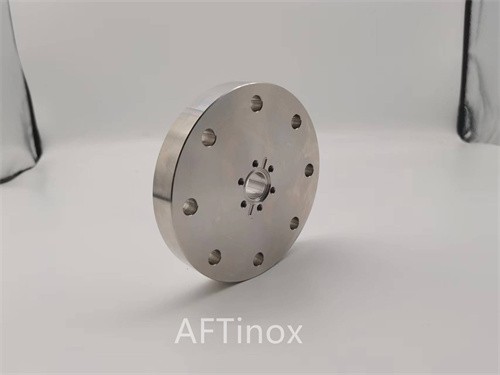

CF Zero Length Flange Adaptor

Flange Sizes: CF16, CF35, CF63, CF100
Material: Stainless steel 304L / 316L (other materials on request)
Seal Type: Metal gasket, OFHC copper (standard)
Sealing Method: Knife-edge, double-sided
Maximum Bake-out Temperature: 450°C (without hardware)
Surface Finish (Sealing Face): Ra ≤ 0.4 µm
Leak Rate: ≤ 1×10⁻¹⁰ mbar·L/s
Compatibility Fully interchangeable with standard ConFlat® components
Applications UHV chambers, beamlines, analytical instruments, R&D systems
