ISO Trapped Centering Ring

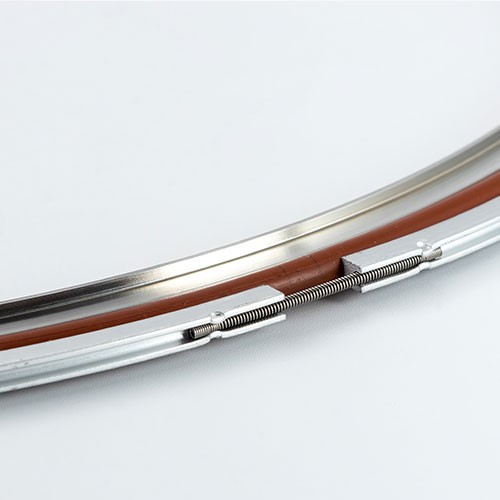

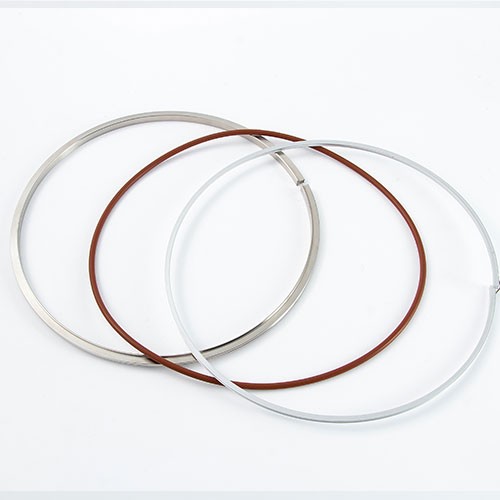

ISO-series vacuum seal contains a metal carrier, O-ring and an aluminum outer spacer with circlip. It is used for connecting flanges with clamp.
CR Material: SS304/SS316L
OR Material: Aluminum
O ring Material: Viton/FKM, Nitrile/NBR gasket
O ring Color: Black, brown, green gasket or as your request
Temperature range : 150 °C(Viton), 80°C(NBR)

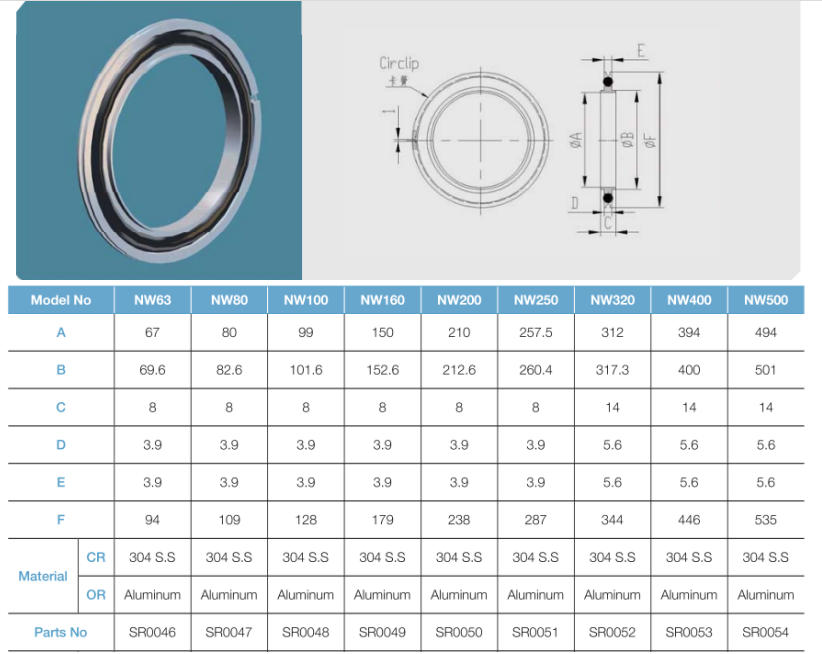

Size: ISO63, ISO80, ISO100, ISO160, ISO200, ISO250, ISO320, ISO400, ISO500, ISO630
