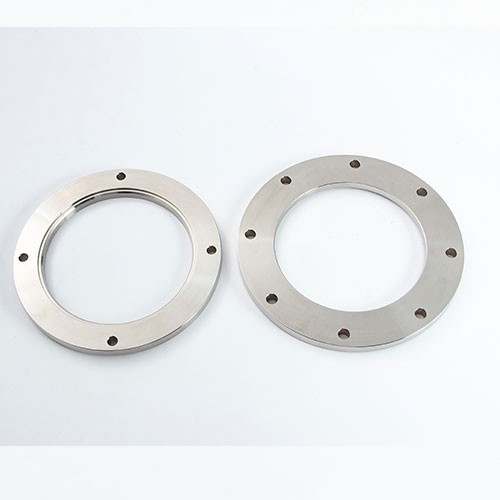

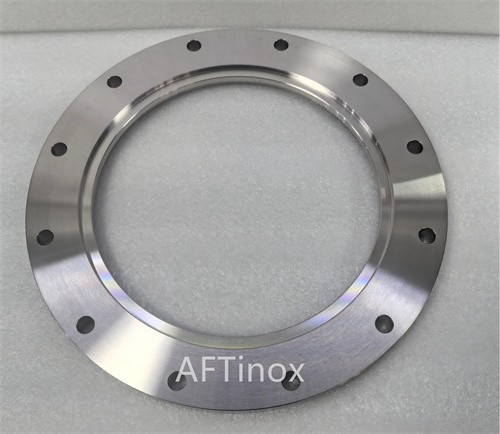

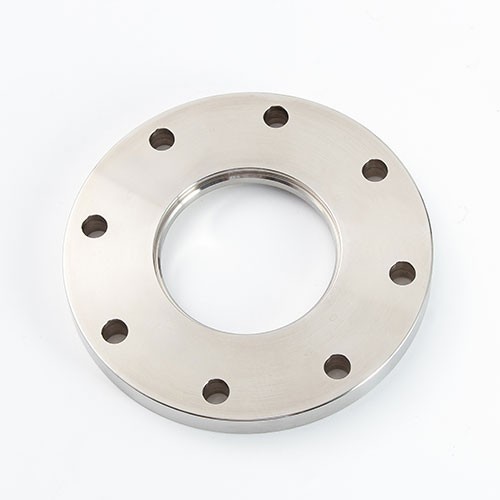

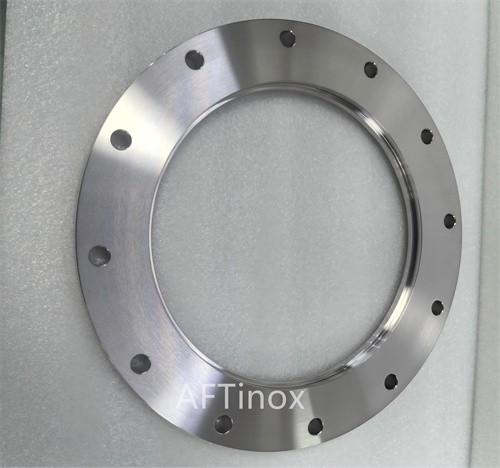

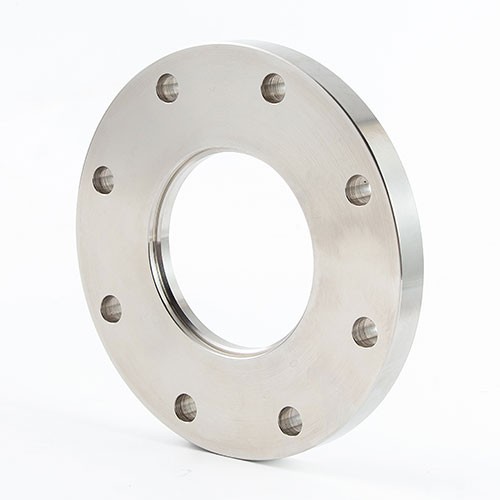

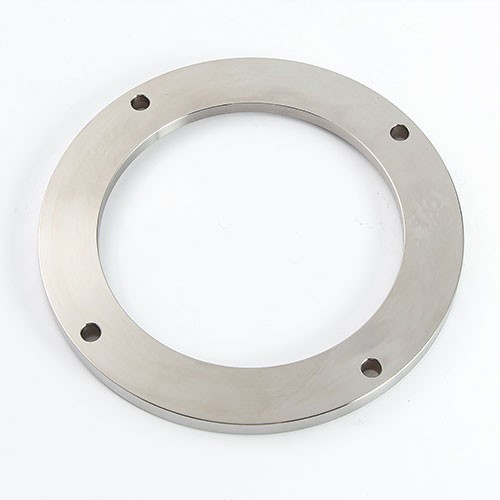

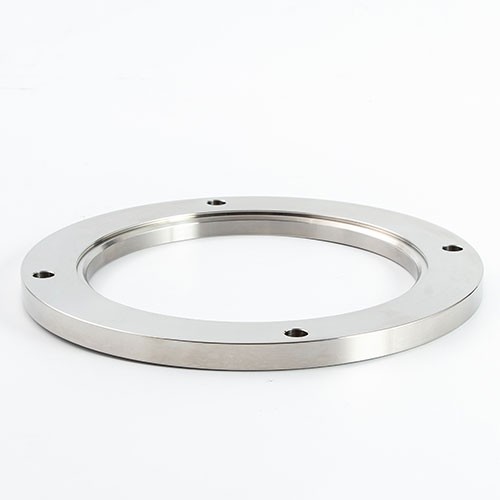

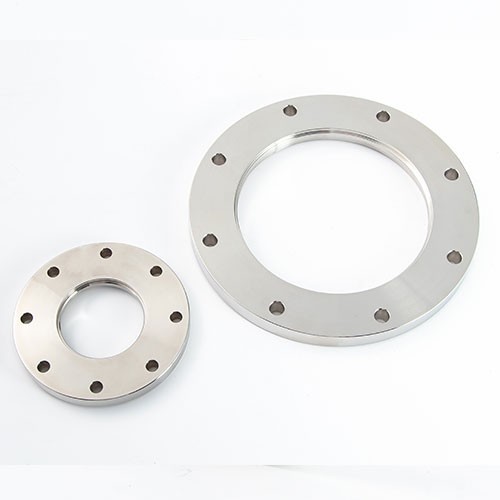

ISO-F Bored Flange

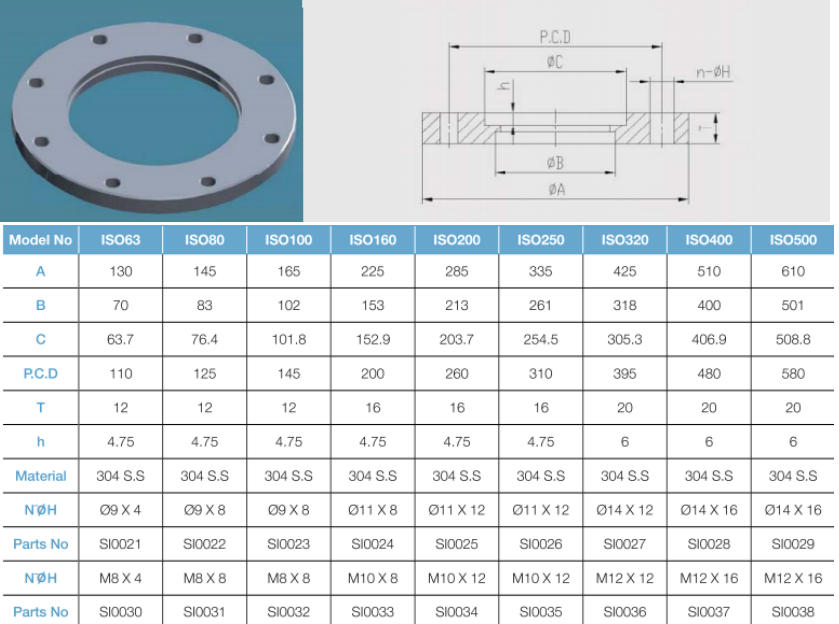

Flange Size: ISO-F63, ISO-F80, ISO-F100, ISO-F160, ISO-F200, ISO-F250, ISO-F320, ISO-F400, ISO-F500, ISO-F630
Bored Size: Bored 76.4mm, Bored 108.3mm, Bored 159.3mm or as your request.
For tube Size: OD76.1*3mm, OD108*3mm, OD159*3mm or as your request.
Material: SS304, SS304L, SS316L
Hole: Through hole, tapped holes (Metric holes or Inch holes)
Seal: Bolts and nuts fixed and centering ring sealed
Usage: High Vacuum System
